Preci Tilting & Swiveling Vice
APEX Code AE-A1-3

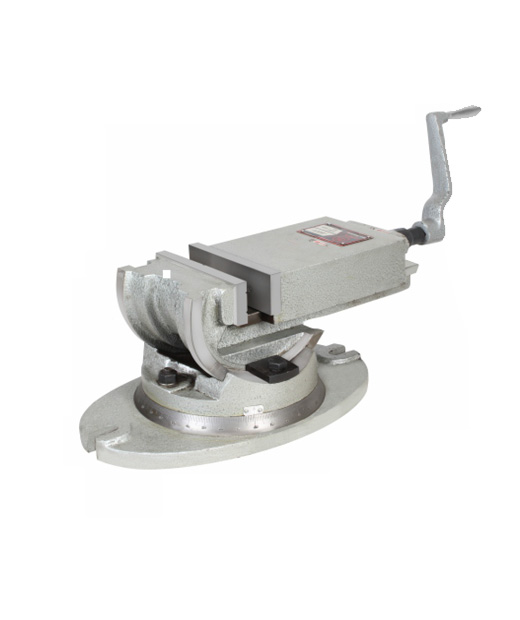

Preci Tilting & Swiveling Vice
(Size : 4",6")
Features
- (Dovetailed Slide) Vee sideways adjustable for giving prolonged working life.
- Manufactured to consistent accuracy to give prolonged reliable service.
- Bearing Surface Precision ground. Flatness within 0.0012" (30 microns)
- Once locked impossible to shift.
- Totally enclosed acme screw with three point location of operating in Manganese Bronze Nut.
- Tenon Slot machined in back as standard for CNC use.
- Swivel base graduated through 360°
- Vertical Tilting Capacity 90°
Finish
- Hammer tone Ash grey.
- SG Ductile Iron Body
Finish
- Hammer tone Grey & Custom.
Specifications
| Code (Size in Inches) | 4 | 6 |
|---|---|---|
| Width of Jaws (in mm) | 100 | 150 |
| Depth of Jaws (in mm) | 40 | 55 |
| Opening of Jaws (in mm) | 100 | 150 |
| Length Overall (in mm) | 345 | 510 |
| Height Overall (in mm) | 150 | 200 |
| Width Overall (in mm) | 180 | 250 |
| Tenon Slot Size (in mm) | 16 | 20 |
| Weight (app. in Kgs.) | 20 | 49 |
